Description

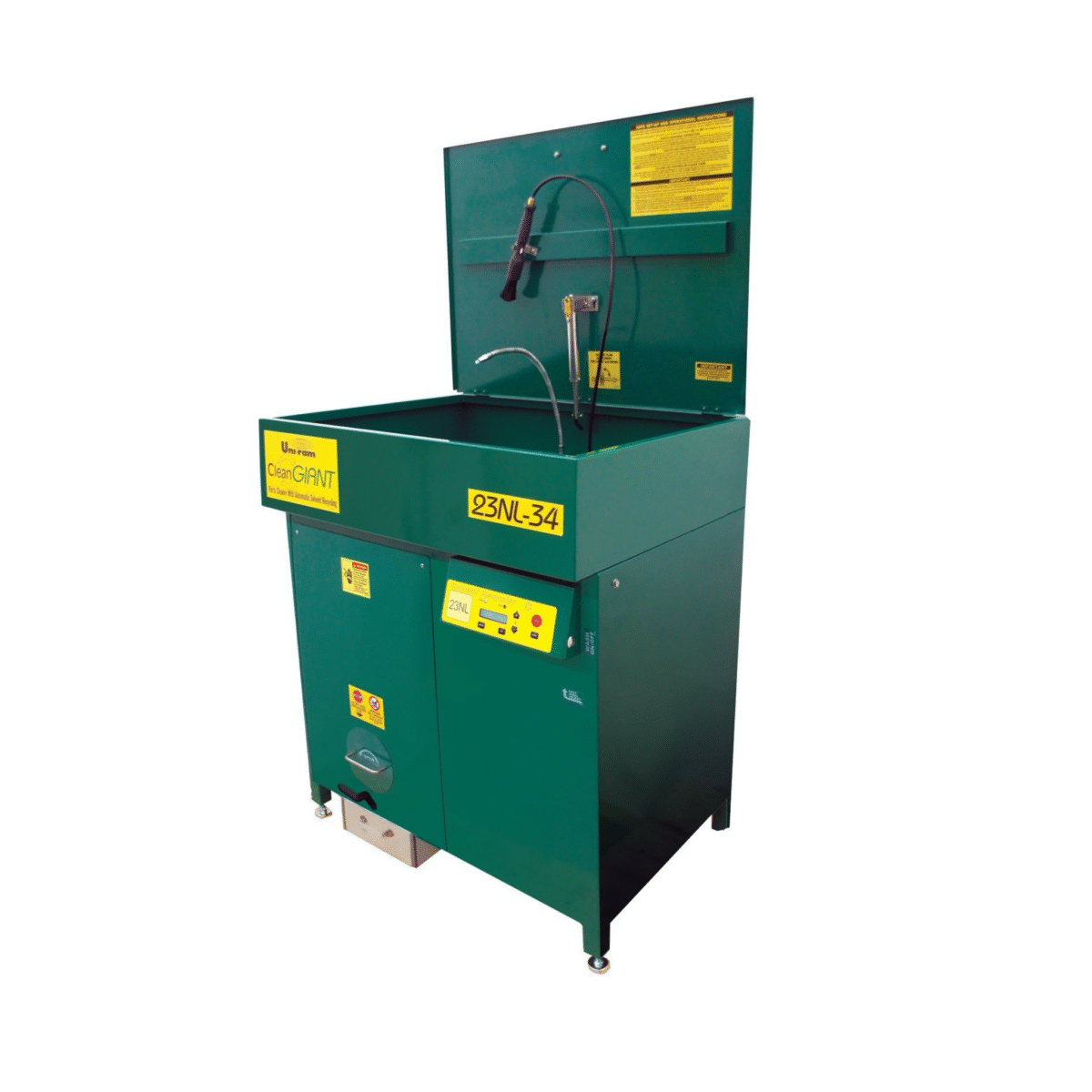

23NL Series Part washer with solvent recycler clean parts with the Flow-Thru Brush and Flexible Spigot. With the press of a button, clean, recycled solvent automatically replaces dirty solvent and the dirty solvent is recycled by the Built-In Solvent Recycler.
Parts clean faster with clean solvent and clean solvent is available every day.
Recycling dirty solvent lowers costs for the facility because solvent purchases and used solvent transported off-site are reduced by 90%. Correspondingly, the facility’s carbon foot print decreases with a 23NL-34.
For a comparison to a sink on a drum type part washer click on the link below.
http://uniram.com/wp-content/uploads/2021/04/WASTE-RECOVERY-SERVICES.pdf
23NL Series Part washer with solvent recycler – RECYCLER OPERATION
With a press of a button, dirty wash solvent drains from the reservoir, 5 gallons
(19 Litres) of clean solvent flows into the reservoir and is available to the operator for cleaning parts. The dirty solvent is recycled in about 4 hours and the waste is discharged into the waste container for later disposal.
FEATURES
Cleaning tools; Flow through brush and flexible spigot, each with flow control
- Sink Lid with Lid Stay and fusible link
- Clean parts while the dirty solvent recycles; parts cleaning is unavailable for only 4 minutes while the system replaces dirty solvent with clean solvent.
- Designed for ease of service; clean tank and boiler tank can be removed without removing wash sink.
- Moveable by pallet truck or forklift truck
- Stainless Steel 30 gallon clean tank for long life
Build-In Solvent Recycler:
- Continuous monitor of work flow; many safety programs, self diagnostics
- LCD with 32-character messages
- Debris, at the end of recycling, flows through drain valve to removable debris drawer for disposal
- Vacuum Pump with a metal impeller for long service life
CERTIFICATION
Certified by ETL to safety standard UL2208 and CSA 22.2 no. 88
Built-In Solvent Recycler
- Electric Supply: 120V AC, Single Phase, 60Hz, 1.5KW, 15A (Use 20A dedicated circuit)
- Vacuum Pump: Uni-ram Vacuum Pump with a Metal Impeller, 120V, 4.6A, 1/3HP, 3,500 rpm
- Heaters: 2 Cartridge Immersion Heater, 120V, 475W each, Stainless Steel heath
- Control System: A computer board with 32-character LCD, Buzzer, 2 LEDs, and 6 Keys
- Control Sensors: Two thermo-couples, two thermostats, Vacuum Sensor, Level Sensor
