• Model: UG110
• Gun Cleaned: 1 Spray Gun & 1 Pot
• Air flush: No
• Rinse: No
• Diaphragm Pumps: 1 (4″ dual diaphragm pump @ 3.7 gal/min)
• Shipping Dimension (WDH): 17 x 16 x 44 inches
• Weight (lb/kg): 66 / 30
• Product Dimension (WDH): 14.3 x 13.6 x 40.6 inches
• Operation: Automatic
• Capacity: Solvent
• Air Requirement: Requires minimum of 85 PSI, 2 CFM of clean dry air. Pressure regulator is built in.
• Tank Construction: 304 Stainless Steel Wash Tank
• Cabinet: Powder-coated mild steel lower cabinet with enclosed pail compartment
• Cleaning Jets: 9 swirl action jets with mounting adapters

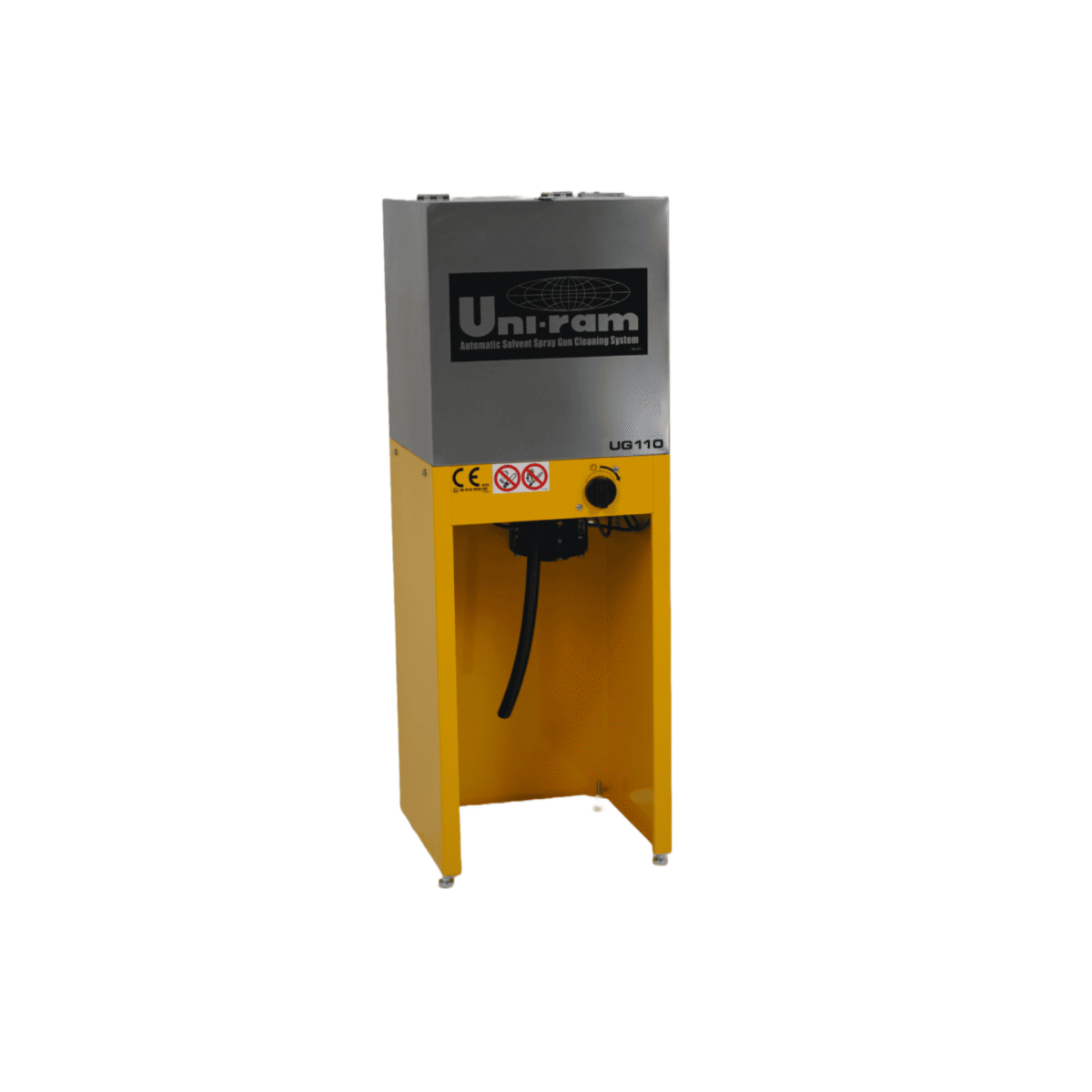

Uni-Ram UG110 – Auto Spray Economy Mini Gun Washer

Compact, Self-Contained Solution for Solvent-Based Cleaning

The UG110 Cascade Auto Spray Economy Mini Gun Washer is a compact and economical choice for small collision repair and woodworking shops. Designed for solvent-borne paint systems, this portable unit provides fast, consistent cleaning for one spray gun and one pot at a time. Despite its small footprint, the UG110 delivers powerful, swirl-action cleaning in just one minute.

Key Features:

• Compact & Portable: Self-contained design fits easily into tight workspaces and mobile applications.

• Efficient Cleaning: Cleans one spray gun and one pot simultaneously in under one minute.

• Swirl Action Jet System: 9 stainless steel jets deliver high-velocity solvent for thorough internal and external cleaning.

• Durable Construction:

  • 304 stainless steel wash tank ensures long life.

  • Lower cabinet made of powder-coated mild steel protects the solvent pail from accidental impact.

• Consistent Solvent Flow: Long-lasting 4″ diaphragm pump ensures uniform cleaning performance.

• Safety First:

  • Built-in safety lid switch halts pump operation if the lid is opened.

  • CE Approved.

Applications:

• Suitable for gravity, siphon, and pressure feed spray systems

• Cleaning spray guns and pots in small auto body, paint, or woodworking shops

• Also suitable for small part washing

Benefits:

• Saves labor time and solvent use

• Ensures clean spray guns for consistent finishing quality

• Reduces solvent waste through reuse and circulation

• Increases the service life of spray guns and cups

Operation:

1. Place the spray gun and pot inside the wash tank.

2. Close the lid and turn the timer to activate the cycle.

3. The diaphragm pump circulates solvent through the paint channel and 9 spray jets clean the exterior.

4. Solvent drains back into the pail for reuse.

5. After one minute, the gun is ready for use.

Specifications:

• Air Requirement: Minimum 85 PSI at 2 CFM (clean, dry air only); pressure regulator built-in and preset to 85 PSI

• Pump Type: 4″ dual-diaphragm

• Tank Material: 304 stainless steel

• Dimensions (WDH): 14.3″ × 13.6″ × 40.6″

• Shipping Dimensions (WDH): 17″ × 16″ × 44″ (43cm × 41cm × 112cm)

• Weight: 45 lb (Product) / 66 lb (Shipping)

• Approvals: CE Certified
