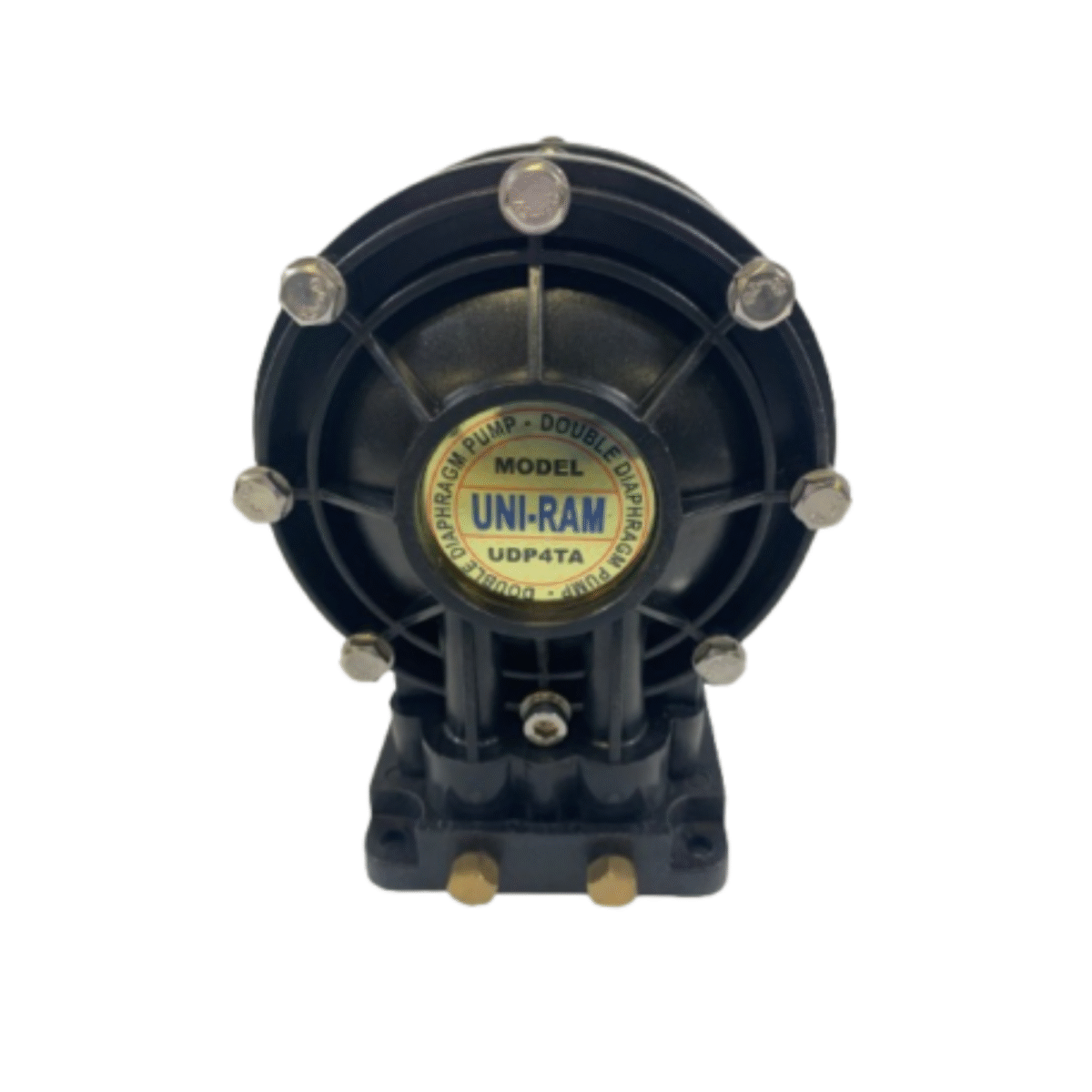

Diaphragm Pumps – UDP Series
$306.00 – $675.00
For Fluid Transfer.
Uni-ram’s range of reliable UDP Series Diaphragm Pumps are used in industry to transfer many types of aqueous solutions and solvents including thinners and varsol.
Specifications
Product Description
Applications
Additional Information
Specifications
-
Versatile Fluid Handling: Transfers solvents and aqueous solutions effectively.
-
Construction Options:
-
UDP2TAB, UDP4TA, UDP5TA: Reinforced Delrin body, Teflon check balls, brass hose barbs.
-
UDP2TS, UDP4TS, UDP4TSS: Stainless steel check balls and hose barbs for enhanced durability.
-
UDP4TSS: Full stainless steel body, check balls, and hose barbs for maximum corrosion resistance.
-
-
Operating Pressure: 40-87 PSI (85 PSI recommended).
-
Priming Vacuum: 7” Hg at 85 PSI.
-
Suction Vacuum: 27” Hg at 85 PSI.
-
Connections: 3/8” O.D. hose barb outlet, 1/8” NPT exhaust port, and 6 mm O.D. air inlet fittings.
-
Mounting: Horizontal installation with four mounting holes in the base plate.
-
Warranty: 2-year replacement warranty for reliable operation.
Product Description
Uni-Ram UDP Series Diaphragm Pumps – Reliable Fluid Transfer Solutions
Uni-Ram’s UDP Series Diaphragm Pumps are engineered for efficient fluid transfer of aqueous solutions and common solvents such as thinners and Varsol. Available in reinforced Delrin and stainless steel models, these pumps deliver consistent performance in demanding industrial settings.
Key Features:
-
Versatile Fluid Handling: Transfers solvents and aqueous solutions effectively.
-
Construction Options:
-
UDP2TAB, UDP4TA, UDP5TA: Reinforced Delrin body, Teflon check balls, brass hose barbs.
-
UDP2TS, UDP4TS, UDP4TSS: Stainless steel check balls and hose barbs for enhanced durability.
-
UDP4TSS: Full stainless steel body, check balls, and hose barbs for maximum corrosion resistance.
-
-
Operating Pressure: 40-87 PSI (85 PSI recommended).
-
Priming Vacuum: 7” Hg at 85 PSI.
-
Suction Vacuum: 27” Hg at 85 PSI.
-
Connections: 3/8” O.D. hose barb outlet, 1/8” NPT exhaust port, and 6 mm O.D. air inlet fittings.
-
Mounting: Horizontal installation with four mounting holes in the base plate.
-
Warranty: 2-year replacement warranty for reliable operation.
Choose Uni-Ram UDP Series Diaphragm Pumps for dependable fluid transfer across a range of industrial applications.
Applications
Applications:
The Uni-Ram UR800QVAC Mobile Sanding Vacuums is ideal for Assists Shops In Reaching Air Quality Standards in a variety of industries, including:
- Manufacturing
- Coating
- Automotive
- Metal Finishing
- Printing & Ink
- Electrical
- Oil & Gas
- Fiberglass
- Furniture & Cabinetrv
- Aerospace &Marine
- and more
Additional Information
| MODEL OF PUMP | TYPE OF MATERIAL |
| UDP2TAB, UDP4TA, UDP5TA | Reinforced delrin body, teflon check balls and brass hose barbs.
|
| UDP2TS, UDP4TS, UDP4TS | Check balls and hose barbs are stainless steel. |
| UDP4TSS | Body, check balls and hose barbs are stainless steel. |
| Model | Diaphragm Size (“) | Consumption (CFM) | Output (Gal/Min) | Output (L/Min) | Net Size (W x L x H) (inches) | Net Size (W x L x H) (cm) | Weight (lbs) | Weight (kg) |
|---|---|---|---|---|---|---|---|---|
| UDP2TA | 2 | 0.95 | 1.5 | 5.7 | 4 x 5 x 3 | 10 x 13 x 8 | 1.3 | 0.6 |
| UDP4TA | 4 | 2.0 | 3.2 | 12 | 5.5 x 5 x 6.5 | 14 x 13 x 17 | 2.8 | 1.3 |
| UDP5TA | 5 | 7.5 | 11.9 | 45 | 7.1 x 6.5 x 9 | 18 x 17 x 23 | 5.7 | 2.6 |
